$15.00

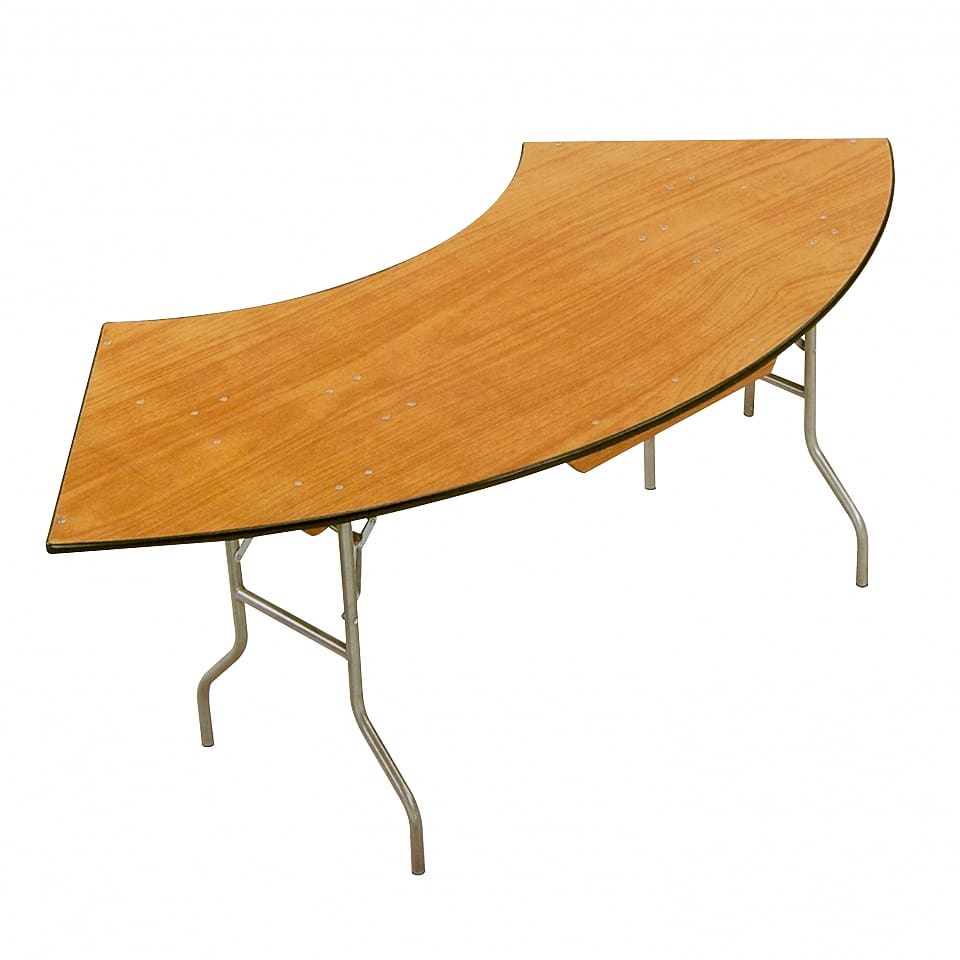

Serpentine 60″
Measuring Your Serpentine Table
Serpentine table are usually referenced by the inside diameter (A) and the outside diameter (B) when the tables are arranged in a circle (Fig 1) A table with an inside diameter of 5′ and an outside diameter of 10′ would be referred to as a “five by ten” serpentine table. This assumes that the width of the table itself (C) is a standard 30 Inches. To ensure the proper fit for a fitted table cover on this table we will need all the measurements shown in the right-hand image. In addition we would need to know the height from the floor.
| Table Size & Model # | Tables To Make A Circle |
A = Inside Diameter |
B= Outside Diameter |
C= Table Width |
D= Inside Radius |
E= Outside Radius |
F= Inner Arc |
G= Outer Arc |
H=Overall Length |
| 3′ x 8′ (3660) | 4 | 3′ | 8′ | 30″ | 18″ | 48″ | 28.2″ | 75.4″ | 68″ |
| 4′ x 9′ (4830) | 4 | 4′ | 9′ | 30″ | 24″ | 54″ | 37.7″ | 84.8″ | 76″ |
| 5′ x 10′ (6030) | 4 | 5′ | 10′ | 30″ | 30″ | 60″ | 47.1″ | 94.2″ | 84″ |
| 5 Leg Correll Model FS3096S |
4 | 30″ | 36″ | 66″ | 56.25″ | 103.25″ | 96″ | ||
| 10′ x 15′ (9030) | 6 | 10′ | 15′ | 30″ | 60″ | 90″ | 62″ | 94″ | 90″ |
| 7′ x 12′ (7230) | 4 | 7′ | 12′ | 30″ | 42″ | 72″ | 66″ | 113″ | 102″ |
