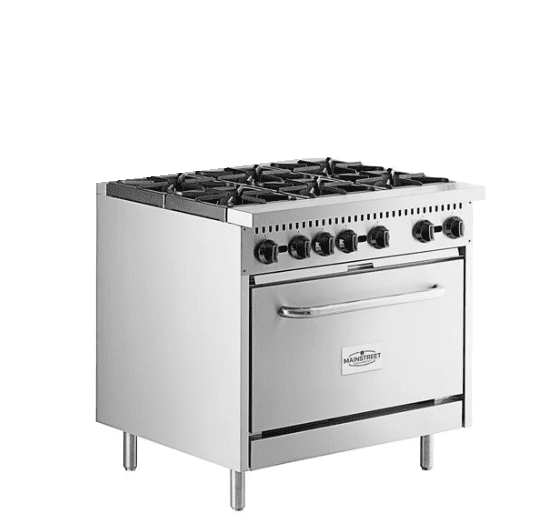

Range/Oven 6 Burner – Propane

Propane Range & Oven with 6 Burners
Includes 10 gallon propane tank

Oven Instructions:

1. Open kick plate under the oven door.
2. Press down temperature control knob and rotate counterclockwise to align the mark with the notch on bezel. Hold Knob Down.
3. Ignite pilot flame with a lighter via ignition hole
4. After pilot flame is ignited, continue holding knob for at least 20 seconds to heat thermocouple. If pilot light goes out, repeat steps 2-4 until remains lit
5. Keep rotating temperature control knob counterclockwise to ignite main burner of oven. Select appropriate temperature according to food requirement
6. Once the pilot is lit it will stay lit indefinitely. If you turn the knob all the way to the OFF position it will turn off all gas to the pilot and it will go out.

Turning Pilot Off:

Rotate knob clockwise to align pointer on knob with notch on bezel

*PLEASE NOTE: Propane is only to be used outdoor. Both Range and Oven need to be lit even if both are not in use.
